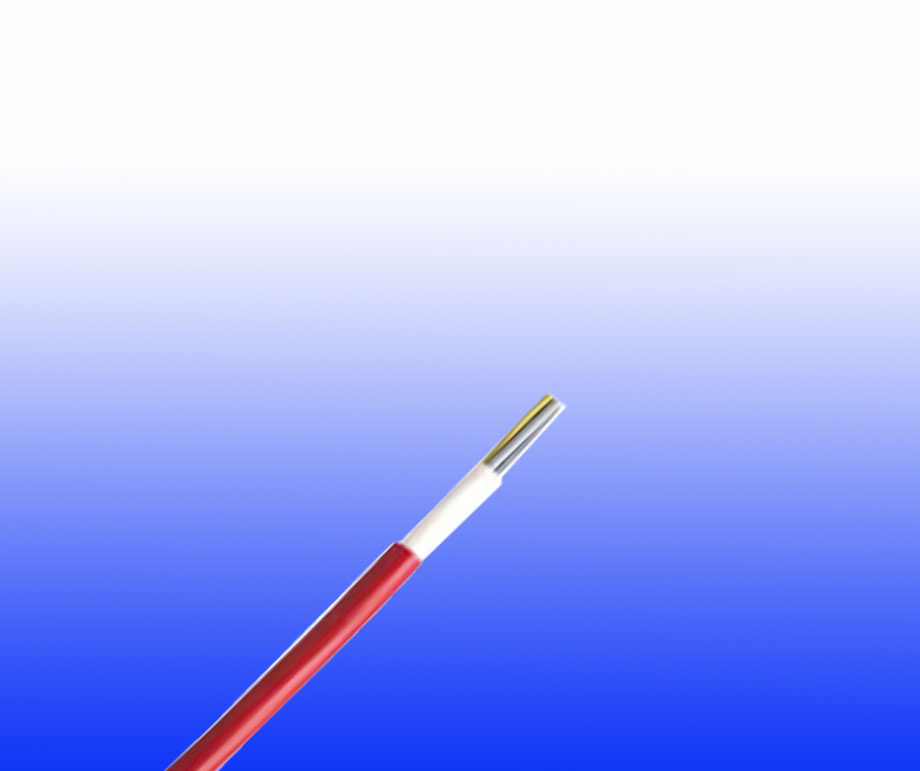

Fire Resistant UTP CAT6 Data Cables
FFX-CAT6UTP4P23FR
Application:
Category 6 Cable is a cable standard for Gigabit Ethernet and other network protocol that is backward
compatible with the Category 5/5E and Category3 Cable Standard. Cat. 6 feature more stringent specification
for crosstalk and system noise. The cable standard is suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit
Ethernet) application.
With fire barrier tape, it will continue to transmit data even when being directly attacked by fire.
Standards:
Basic design to EN50173Fire Performance:
Circuit Integrity IEC 60331-23
Voltage Rating:
60V

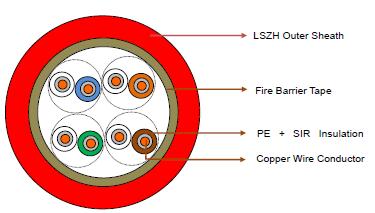

Cable Construction:
Conductors: Plain annealed copper wire, solid according to IEC 60228 class 1.
Insulation: PE and SIR compound.
Separator: Plastic separator.
Cabling elements: Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-
pair cable had four cores laid in quad formation.
Fire Barrier: Fire resistance tape wrapped overall core assembly.
Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1.
Physical and thermal Properties:
Temperature range during operation (fixed state): -20°C - +60°C
Temperature range during installation (mobile state): -5°C - +50°C
Minimum bending radius: 10 x Overall Diameter
Electrical Performance:
Characteristic Impedance |
100±15Ω |
|---|---|
Nominal Velocity of Propagation (NVP) |
69% |
Max. DC Resistance |
7.5 Ω/100m |
Max. Resistance Unbalance |
3% |
Max. Mutual Capacitance: |
5.6 nF/100m |
Max. Capacitance Unbalance |
330 pF/100m |
Max. Propagation Delay Skew |
45 ns/100m |
Max. Propagation Delay |
536 ns/100m@100mhz |
Max. Pulling Load |
80 N |
Transmission Properties:
Frequency |
Min.RL |
Max.Attenuation |
NEXT |
PSNEXT |
|---|---|---|---|---|
MHz |
dB |
dB/100m |
dB |
dB |
1 |
18 |
1.0 |
74.3 |
72.3 |
4 |
21 |
2.8 |
65.3 |
63.3 |
8 |
22.5 |
4.3 |
60.8 |
58.8 |
10 |
23 |
5.0 |
59.3 |
57.3 |
16 |
23 |
6.6 |
56.2 |
54.2 |
20 |
23 |
7.5 |
54.8 |
52.8 |
25 |
22.3 |
8.5 |
53.3 |
51.3 |
31.25 |
21.6 |
9.7 |
51.9 |
49.9 |
62.5 |
19.5 |
14.4 |
47.4 |
45.4 |
100 |
18.1 |
18.8 |
44.3 |
42.3 |
Frequency |
Min.RL |
Max.Attenuation |
NEXT |
PSNEXT |
|---|---|---|---|---|
MHz |
dB |
dB/100m |
dB |
dB |
200 |
16 |
28 |
39.8 |
37.8 |
250 |
15.3 |
31.8 |
38.3 |
36.3 |
Frequency |
ELFEXT |
PSELFEXT |
ACR |
|---|---|---|---|
MHz |
dB |
dB |
dB |
1 |
67.8 |
64.8 |
72.3 |
4 |
55.8 |
52.8 |
61.5 |
8 |
49.7 |
46.7 |
55.5 |
10 |
47.8 |
44.8 |
53.3 |
16 |
43.7 |
40.7 |
48.6 |
20 |
41.8 |
38.8 |
46.3 |
25 |
39.8 |
36.8 |
43.8 |
31.25 |
37.9 |
34.9 |
41.2 |
62.5 |
31.9 |
28.9 |
32 |
100 |
27.8 |
24.8 |
24.5 |
200 |
21.8 |
18.8 |
10.8 |
250 |
19.8 |
16.8 |
5.5 |
Construction Parameters:
Cable Code |
Conductor Diameter |
Nominal ISheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
|---|---|---|---|---|
|
mm |
mm |
mm |
kg/km |
FFX-CAT6UTP4P23FR |
0.57±0.01 |
1.20±0.1 |
11.5±1.0 |
140 |
